When it comes to high-performance FTTH (Fiber to the Home) network installations, SC/APC Singlemode Fiber Pigtail stands as a vital component in ensuring minimal signal loss and reliable data transmission. Whether you’re managing deployments in urban broadband, rural fiber rollouts, or fiber backbone expansion, the choice of fiber pigtail can significantly impact the efficiency and longevity of your network.
In this comprehensive SC/APC Singlemode Fiber Pigtail procurement guide, we’ll walk ISPs, telecom operators, and network integrators through essential features, specifications, application scenarios, and tips for sourcing high-quality pigtails directly from experienced manufacturers in China—like us.
What Is an SC/APC Singlemode Fiber Pigtail?

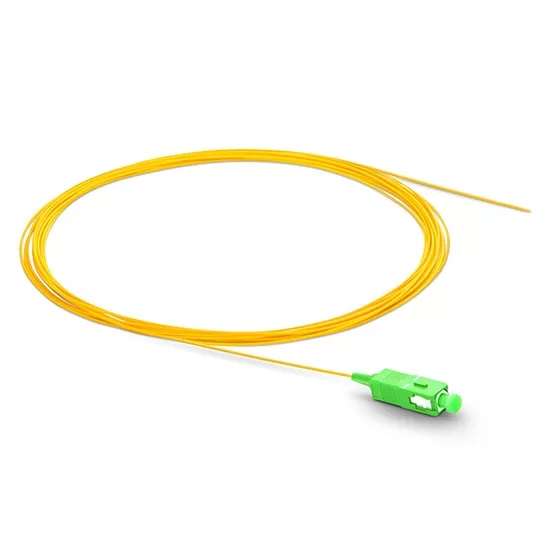

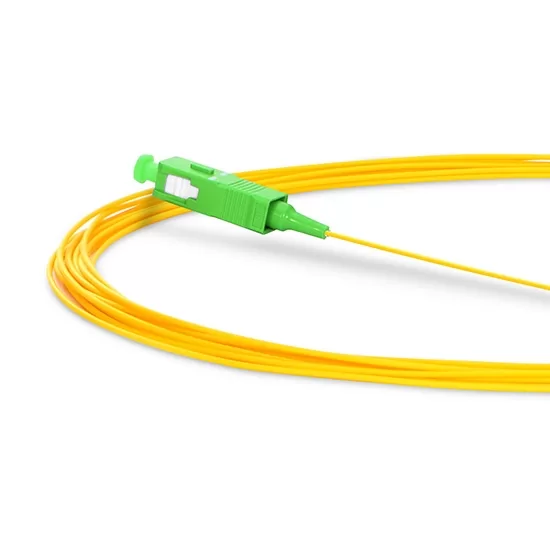

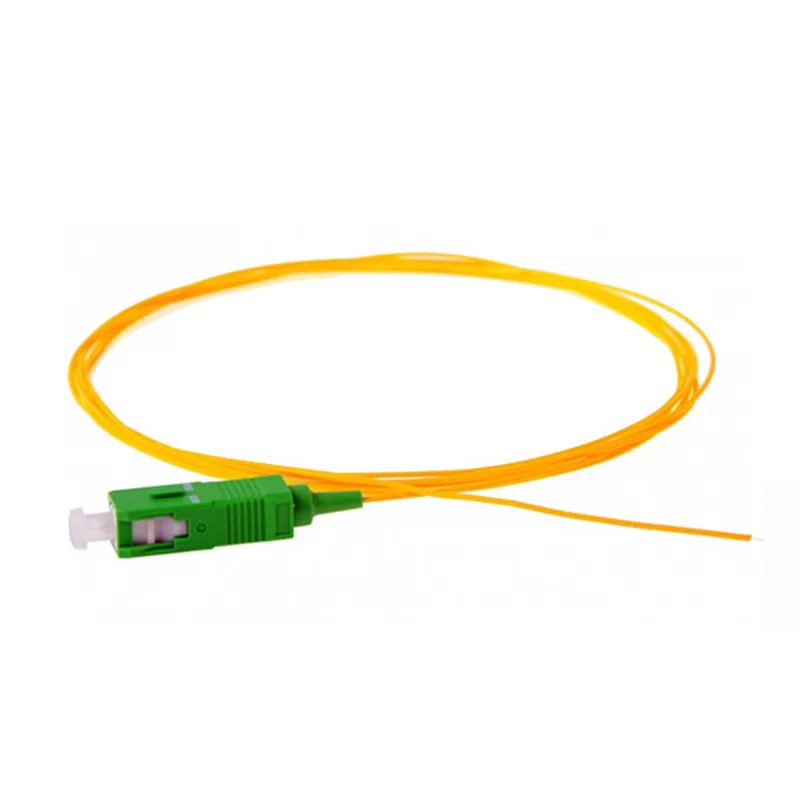

A SC/APC Singlemode Fiber Pigtail is a short piece of optical fiber with a pre-terminated SC/APC (Angled Physical Contact) connector on one end and an unconnectorized bare fiber on the other. The SC (Subscriber Connector) is widely known for its push-pull coupling mechanism, and the APC variant features an 8° angled ferrule end-face, which minimizes back reflection (typically < -60dB), making it ideal for high-speed and long-distance transmission.
Key Characteristics:
- Steckertyp: SC/APC (green-colored housing)
- Fasermodus: Singlemode (G.657A1/G.652D)
- Kabelart: Simplex
- Jacket Rating: LSZH (Low Smoke Zero Halogen) – for safe indoor use
- Länge: Typically 1 to 3 meters, customizable
Applications of SC/APC Singlemode Fiber Pigtails
Due to their precision and optical performance, SC/APC fiber pigtails are widely used in:
- FTTH / FTTx networks
- Optical distribution frames (ODFs)
- Patch panels Und wall-mount boxes
- Splicing in fiber enclosures
- Data centers and telecom central offices
- WDM systems and passive optical networks (PONs)
These pigtails are crucial when fusion splicing is needed to connect bare fibers to pre-terminated fiber-optic components while maintaining a clean, low-loss signal pathway.
Why Choose SC/APC Over SC/UPC for FTTH?
SC/APC and SC/UPC connectors are both popular in fiber networks, but for FTTH and telecom use, SC/APC has distinct advantages:
| Besonderheit | SC/APC | SC/UPC |
|---|---|---|
| End-Face Type | Angled (8°) | Flat (Ultra Physical Contact) |
| Rückflussdämpfung | ≤ -60 dB | ≤ -50 dB |
| Best Use Case | FTTH, CATV, WDM, long-haul | Data centers, LANs |
| Reflective Interference | Minimal (ideal for analog signals) | Higher, may affect signal |
Der SC/APC Singlemode Fiber Pigtail is clearly the better choice for high-speed, long-range, and low-reflection applications.
Why LSZH Rated Jackets Matter
Our SC/APC Singlemode Fiber Pigtails come with LSZH (Low Smoke Zero Halogen) jackets. This rating ensures that:
- In case of fire, they emit minimal toxic fumes.
- Suitable for use in confined indoor spaces, telecom closets, and building risers.
- Compliant with modern safety codes and regulations in the U.S. and EU markets.
Working With a Trusted SC/APC Singlemode Fiber Pigtail Manufacturer
We are a professional SC/APC Singlemode Fiber Pigtail manufacturer and supplier based in China. For over 10 years, we’ve supplied FTTH solutions to several top-tier ISPs across the United States, offering a wide range of fiber optic components that meet the highest international standards.
Our Key Strengths:
- Factory-direct pricing – Eliminate middlemen and save costs
- High-volume production – Ideal for national rollouts and large-scale ISP projects
- Customized lengths, jacket colors, and packaging
- Strict QC process – Each pigtail tested for IL/Return Loss
- Global logistics support – On-time delivery worldwide
Tips for ISPs & Telecom Operators When Sourcing SC/APC Singlemode Fiber Pigtails
Whether you’re scaling up your FTTH footprint or preparing for 5G backhaul infrastructure, here are essential tips when procuring SC/APC pigtails:
1. Check Connector Quality
Ensure the SC/APC connectors meet GR-326 standards with precise end-face polishing and low insertion loss (< 0.3 dB).
2. Ask for Test Reports
Every shipment should include IL and RL test reports. We provide 100% testing with OTDR or interferometer systems.
3. Insist on LSZH Materials
Especially for indoor applications, always choose LSZH jackets for safety and code compliance.
4. Evaluate Packaging & Labeling
Proper labeling (fiber type, lot number, barcode) ensures smooth inventory and on-site installation.
5. Partner With OEM/ODM Capable Manufacturers
We offer white-label and OEM services so you can brand the fiber pigtails with your company name or project codes.
Our SC/APC Singlemode Fiber Pigtail – Technical Specifications
| Parameter | Spezifikation |
|---|---|
| Steckertyp | SC/APC |
| Fasertyp | Singlemode G.657A1 or G.652D |
| Kabeldurchmesser | 0.9mm, 2.0mm, or 3.0mm |
| Mantelmaterial | LSZH |
| Einfügedämpfung | ≤ 0.3 dB |
| Rückflussdämpfung | ≤ -60 dB |
| Betriebstemperatur | -40°C bis +85°C |
| Kabellänge | 1m, 2m, 3m or customized |
| Flame Retardancy | IEC 60332-1, RoHS compliant |
Partner With Us – Your FTTH Sourcing Partner in China
We are more than just a supplier—we are your strategic partner in FTTH growth. We understand the challenges that ISPs and telecom operators face, including cost control, deployment speed, and quality consistency.
By sourcing SC/APC Singlemode Fiber Pigtails directly from us, you gain:
- Reduced procurement costs
- Better lead times and customization
- Stable long-term supply
- Technical support and product consulting
Our mission is to become a trusted sourcing partner for ISPs and telecom operators worldwide, delivering top-quality FTTH materials at competitive factory-direct prices.
Abschluss
Der SC/APC Singlemode Fiber Pigtail is a critical component in any modern fiber optic infrastructure. By understanding its features, advantages, and proper procurement methods, ISPs and telecom operators can enhance their network performance and reduce long-term costs.
We invite you to contact us today to request samples, get quotes, or discuss your FTTH project requirements. With over a decade of experience and collaboration with leading US ISPs, we are confident that we can deliver the performance, pricing, and service your network deserves.
Ready to source SC/APC Singlemode Fiber Pigtails at factory prices?
Contact us now to get a quote and become our long-term partner in FTTH solutions.
