Introduction to MTRJ Patch Cord

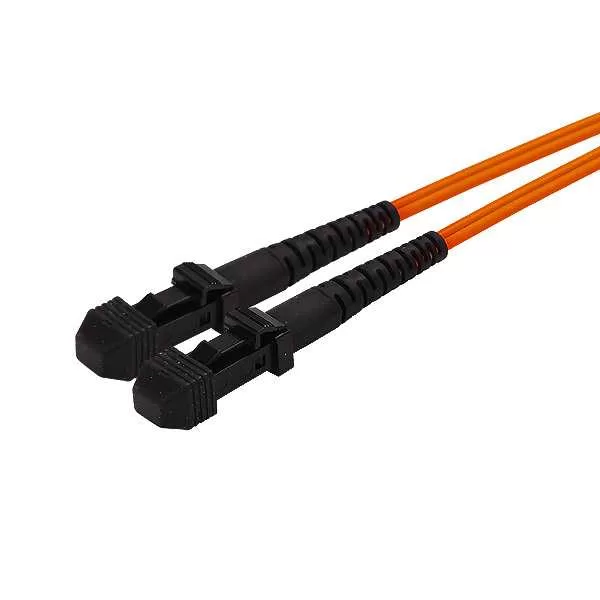

MTRJ Patch Cord with MTRJ to MTRJ termination, this high-quality fiber optic patch cable is specifically designed for ethernet, multimedia, or communication applications. MTRJ Patch Cord pre-connect the MTRJ connector what features an easy-to-use latch-type design similar to the RJ connector on a Cat5 patch cable, MTRJ Patch Cord connectors’ half the size of the SC connector. With its small footprint design, the MTRJ Patch Cord Multimode 50/125um duplex can increase the port density.
MTRJ Patch Cord Specifications
| tipo de conector | MTRJ to MTRJ |
| Modo de fibra | Multimode 50/125um |
| Pérdida de inserción | ≤0,3dB |
| Pérdida de retorno | ≥45dB |
| Longitud de onda | 850/1300nm |
| Grado de fibra | G.652.D |
| Radio de curvatura mínimo | 30mm |
| Recuento de fibras | duplex |
| Diámetro del cable | 2,0 mm |
| Cubierta para cables | CLORURO DE POLIVINILO |
| Polaridad | A(Tx) a B(Rx) |
| Temperatura de funcionamiento | -20~70°C |
| Temperatura de almacenamiento | -40~80°C |
FAQs on MTRJ Patch Cord
What is the max pulling force that can be applied during installation for the standard cable?
The max pulling force during the cable installation is 70N.
