PLC Fiber Splitter Supplier for Wholesale & Custom
Help you wholesale & custom high quality PLC splitter at factory prices, If not, Ignore us as a good PLC splitter supplier.
High Quality Chip
Pengalaman 13 Tahun
Kualitas asuransi
Ready-to-Ship PLC Splitter
Your one-stop PLC Fiber Splitters supplier from custom to delivery, Easy and safe, No Overpaying, Fast Delivery.

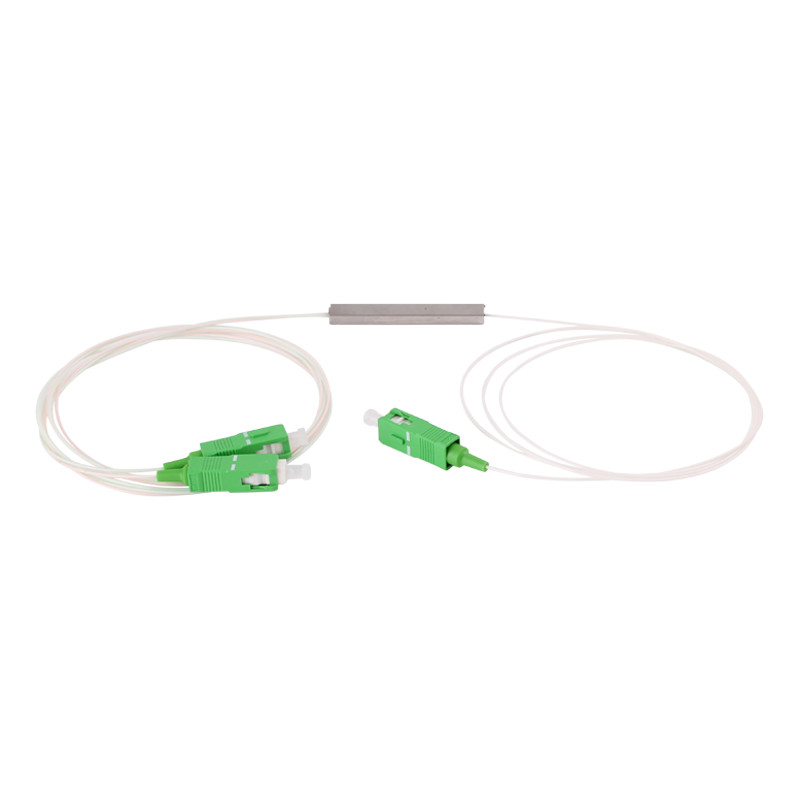

1×2 PLC Fiber Splitter

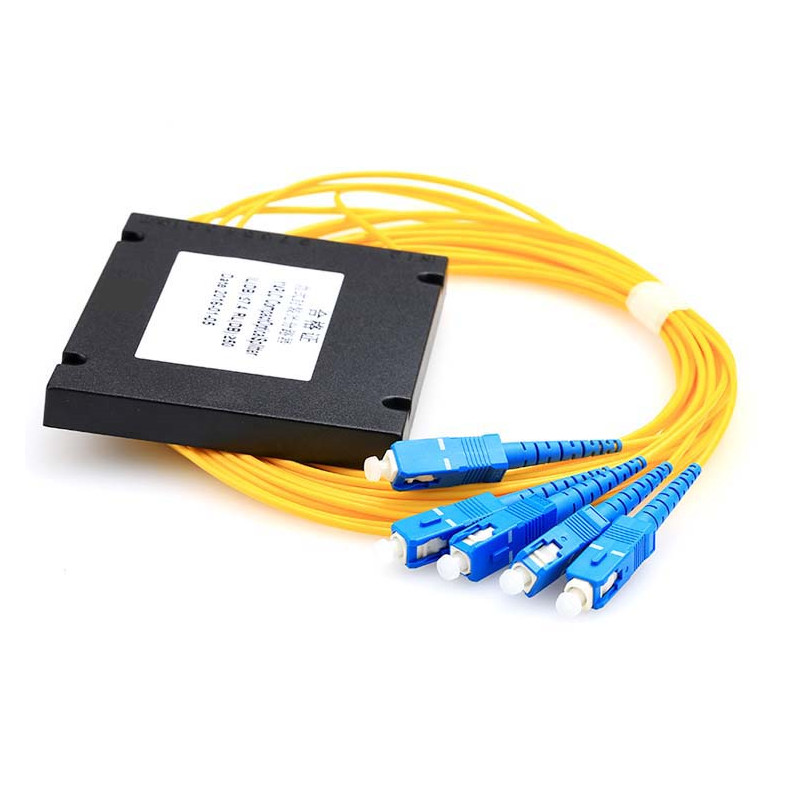

1×4 PLC Fiber Splitter
1×8 PLC Fiber Splitter

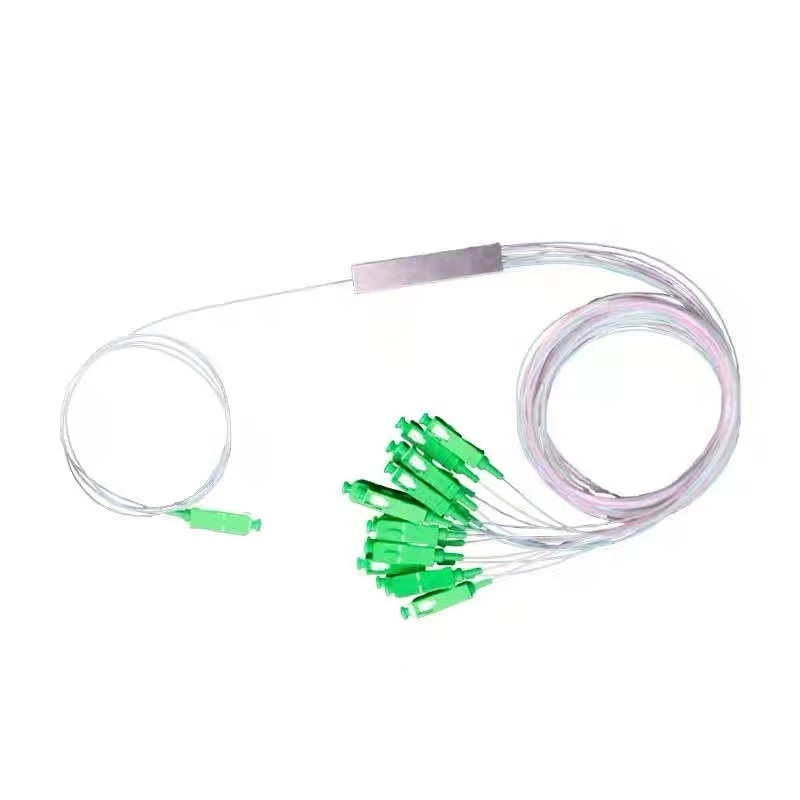

1×16 PLC Fiber Splitter
Pemisah Serat PLC 1×32

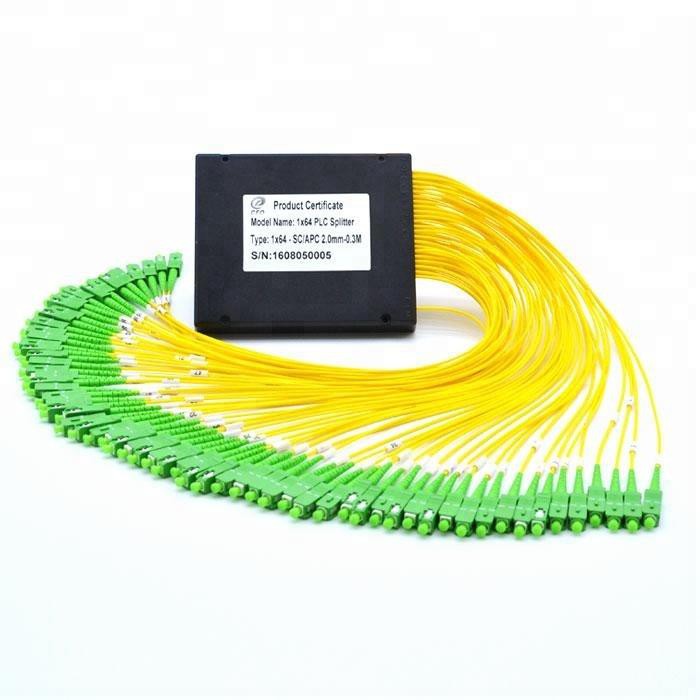

1×64 PLC Fiber Splitter
1×6 PLC Fiber Splitter
1×24 PLC Fiber Splitter

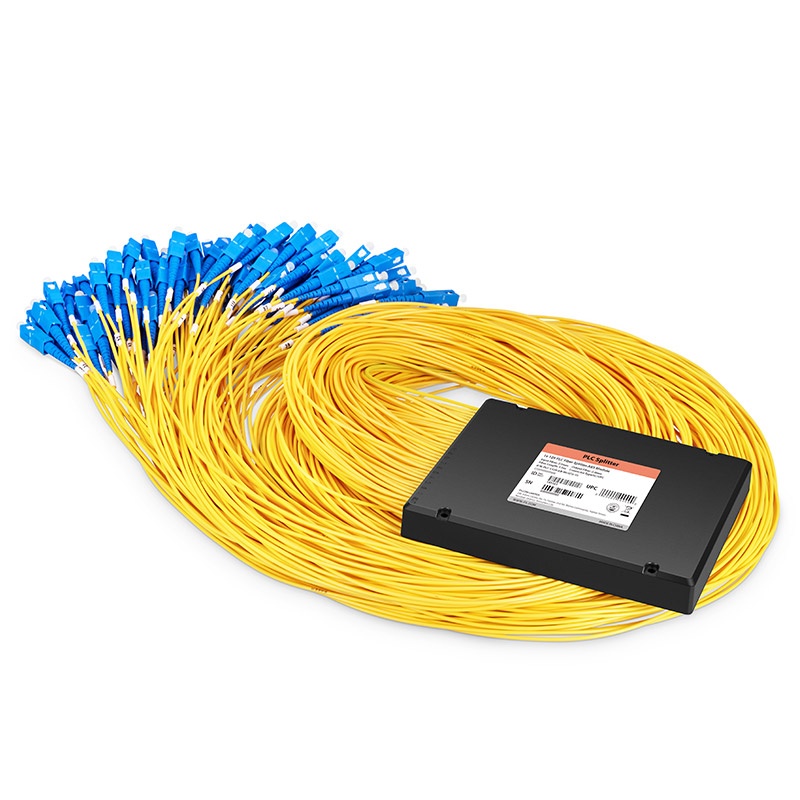

1×128 PLC Fiber Splitter
How to Choose PLC Fiber Splitter?
We are a fiber connectivity-based company that takes pride in our superior customer service, sending you the best PLC fiber splitter to your doorstep.
1
Selecting 1xN or 2XN PLC Fiber Splitter
Such as 1×4 splitter, 1×8 splitter, 1×16 splitter, 2×32 splitter, 2×64 PLC splitters.
2
Choosing 6 Main Types of PLC Splitter
Bare Fiber Optical Splitter, Blockless Fiber Splitter, ABS Splitter, LGX Splitter, tray type PLC splitter and Rack-Mount Splitter.
3
Fiber Length for Input & Output
Consider the distance from the source device (switch) to the splitter and from the splitter to each output device (PLCs, HMIs).
4
Adding Fiber Optic Connectors SC LC ST FC or Custom
The suitable fiber connectors with PLC splitter makes easy to your connection in FTTH network.
5
Plastic Module Packing & Test Report
Safe package for a single PLC splitter is very important, We use robust plastic module packaging for your plc splitter, each PLC splitter comes with a testing report after 100% tested.
Apa yang kita pedulikan?
Low Insertion Loss
Usually the APC polishing less than 0.2dB and UPC less than 0.25dB.
100% Tested
Ideal for network, telecom and under-floor data center.
High Jacket Material
High-quality tight-buffered cable protects the fiber optic core, Increases the strength & durability.
High Return Loss
The return loss more than 55dB for UPC and 60dB for APC.
Ceramic Ferrule
The precision ferrules can reach up to 500 times insertion lifespan.
Polishing Quality
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.
Your PLC Fiber Splitters Supplier
Custom or wholesale PLC Fiber Splitters at low cost, 100% of good quality with 540 days warranty.
FiberCheap is one of China’s leading PLC splitter manufacturers and suppliers. We strive to deliver your PLC splitters on time, within budget, and with an exceptional level of quality. Price your project quickly and easily now!
- With SC connectors (for APC) and without connectors (for SC, LC, FC).
- Separation ratio: 1×2, 1×4, 1×8, 1×16, 1×32.
- Cable diameter – 0,9/2/3 mm.
- Standard length – 1.5 m.
- Adjustable wavelength – 1260-1650 nm.
Pengemasan & Pengiriman
When we pack your PLC Fiber Splitters, Each of them are in robust plastic module packaging with an outer carton. The most important thing is to keep your package safe. The individual package consists of plc splitter and test report.
FAQ
What is a PLC fiber splitter?
PLC splitters, are used to evenly divide one or two optical signals into multiple optical signals. PLC splitters are passive optical devices that are widely used in Passive Optical Networks (PON) by connecting to the Main Distribution Frame (MDF).
What is the parameters for 1xN and 2xN PLC fiber splitter? ( Important! )
1XN PLC Splitter Specification
| Table 1-1XN PLC Splitter | ||||||
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)（P/S Grade） | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 °C)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40～85 | |||||
| Storage Temperature (°C) | -40～85 | |||||
| Device Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 50×7×4 | 60×12×4 |
| Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 |
| Mini-Module Dimension (mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100x40x6 |
2XN PLC Splitter Specification
| Table2-2XN PLC Splitter | ||||||
| Parameter | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB) | 4 | 7.6 | 11 | 14.4 | 17.5 | 21 |
| Loss Uniformity (dB) | 0.6 | 1 | 1.2 | 1.5 | 1.8 | 2.2 |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 °C)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40～85 | |||||
| Storage Temperature (°C) | -40～85 | |||||
| Device Dimension (mm) (L×W×H) | 40×4×4 | 50×4×4 | 50×4×4 | 50×7×4 | 60×7×4 | 60×12×4 |
| Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 |
| Mini-Module Dimension (mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | N/A |
What is the difference between PLC splitter and FBT splitter?
FBT Splitters: FBT splitters are usually larger and bulkier compared to PLC splitters. They require more space and are more suitable for applications where size is not a constraint. PLC Splitters: PLC splitters are compact and can be integrated into small form factor packages
What are the types of PLC Splitters?
PLC Fiber Optic Splitter can be categorized by the PLC splitter chip they use, meaning there are 1xN and 2xN PLC splitters, such as 1×4 splitter, 1×8 splitter, 1×16 splitter, 2×32 splitter, 2×64 PLC splitters, etc. Users can choose different input and output numbers depending on subscriber conditions or cable length.
In addition, PLC splitters also can be classified based on different packages to meet clients’ needs in various scenarios, including small size PLC splitter that needs to be used in terminal boxes and big size rack mounted PLC splitter that can be installed in racks.
There are five types of PLC splitters in the market: Bare Fiber Optical Splitter, Blockless Fiber Splitter, ABS Splitter, LGX Splitter, and Rack-Mount Splitter.
What is the typical delivery time for PLC Splitter orders?
Tergantung kuantitas pesanan Anda, biasanya waktu pengiriman untuk kontainer 40 inci adalah 15-20 hari. Sebagian besar pesanan kecil dapat dikirim dalam 3-7 hari kerja.
Untuk waktu pengiriman yang lebih baik, Anda dapat menghubungi teknisi penjualan kami setelah menerima penawaran kami.
Can I get free PLC Splitter samples before purchasing?
Ya, sampel gratis selalu tersedia hampir sepanjang waktu, kami memiliki stok sampel gratis dan Anda dapat mengharapkan pengiriman pada hari yang sama untuk evaluasi sampel.
As per our practice, please inform us your express account, such as DHL, FedEx, TNT, UPS, etc. Otherwise, we may charge $18-$99 for shipping.
What are your payment terms in ordering PLC fiber splitter?
Untuk pesanan normal, kami menerima T/T terlebih dahulu, terkadang untuk pesanan kecil, kami menerima PayPal. Kami tidak dapat menerima pembayaran melalui kartu kredit untuk saat ini.
Kirim Pertanyaan Sekarang
Bekerja Sama Dengan Kami untuk Mengembangkan Bisnis Internet Fiber Anda
OEM & ODM Tersedia
Apakah Anda ingin logo Anda ada di paket atau ingin menyesuaikannya secara berbeda, kami dapat membantu Anda.
Pencahayaan Pengiriman Cepat
Jika Anda tidak membutuhkan produk serat optik khusus, cukup produk jadi, persediaan akan dikirim dengan cepat.
Mulailah Dengan MOQ Rendah
Jika anda ingin grosir produk fiber optic, kami mendukung jumlah minimal order 1 pcs untuk pemesanan pertama.
Dipercaya oleh merek-merek besar sejak 2010
