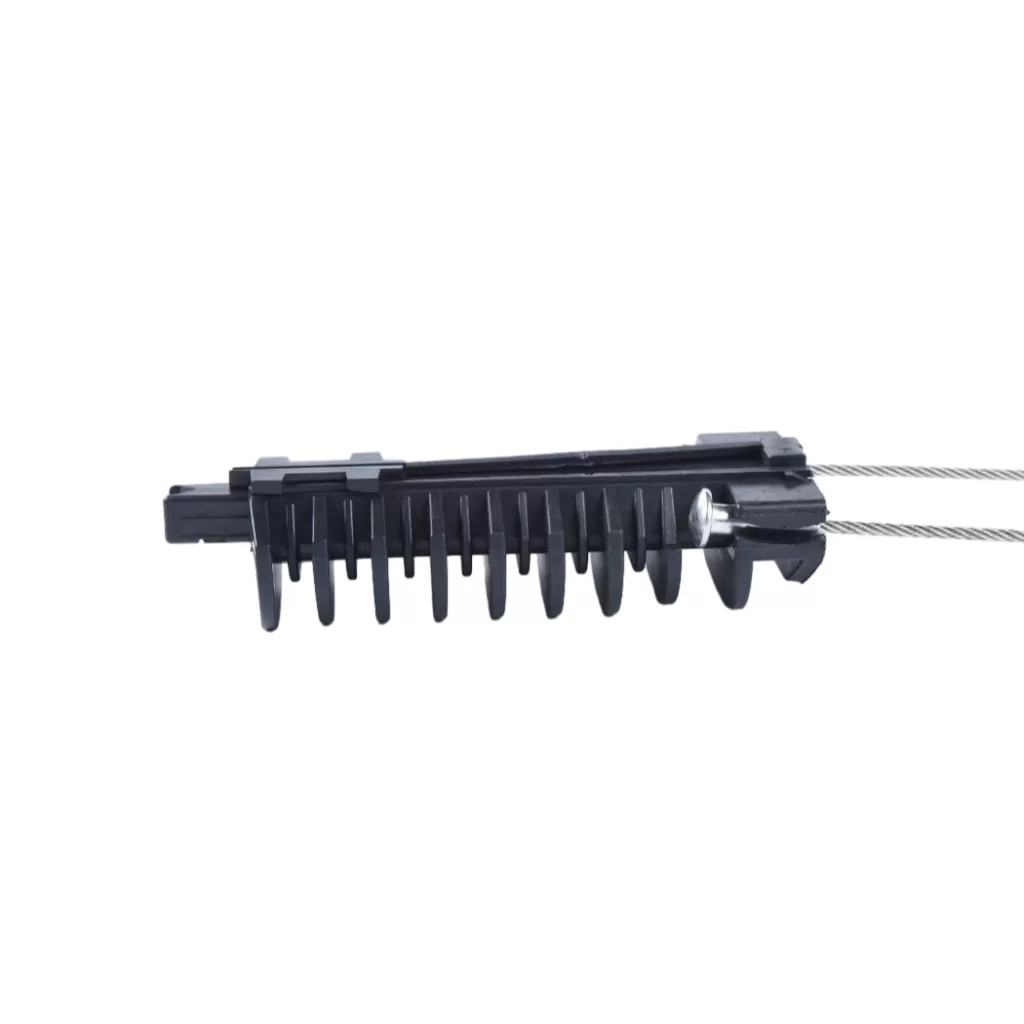

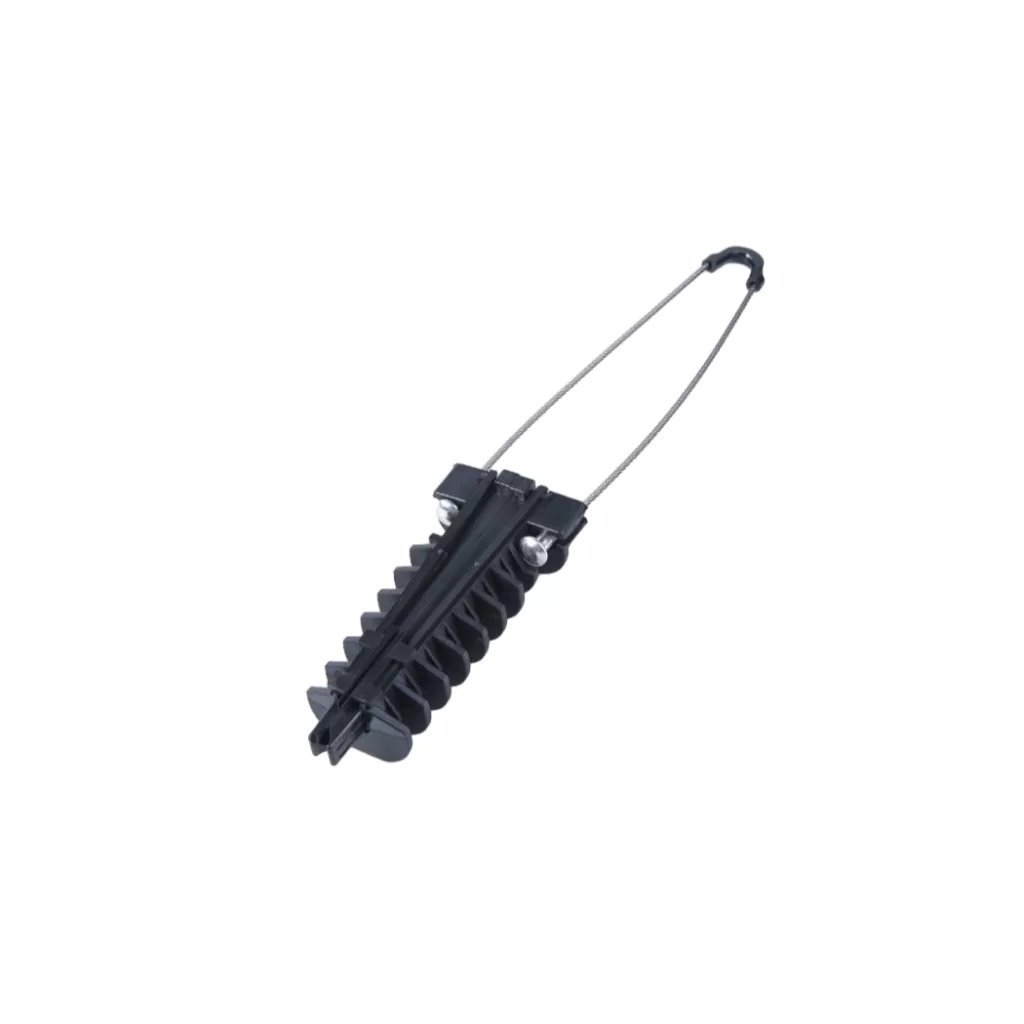

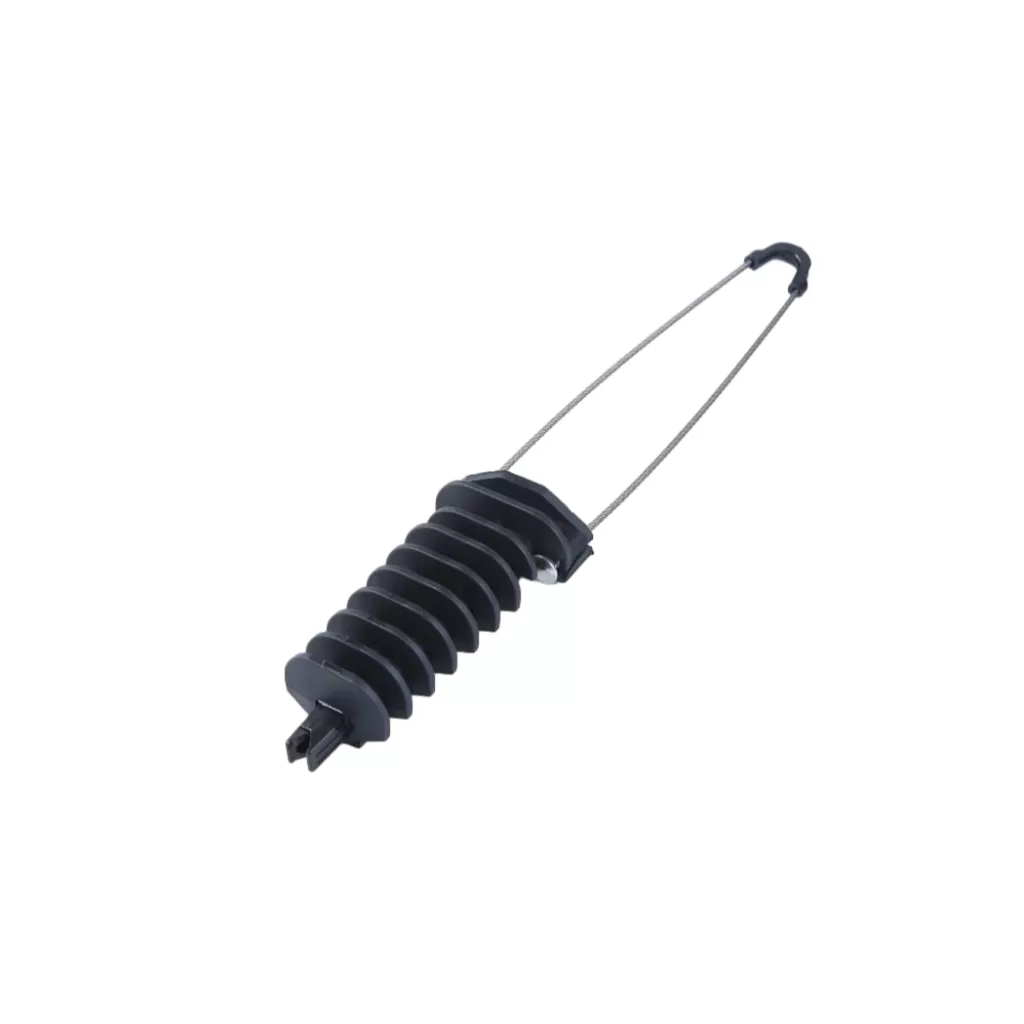

Fiber Optic Cable Clamp, PA1500(8-12MM)

Anchoring plastic clamp PA1500 is designed to anchor strain low voltage ABC cable or ADSS fiber optic cables in overhead lines, Such as telecommunication lines, energy lines, network lines, with big diameter range 8-12mm.

Clamp TypeCable Diameter,mmMaterialsMin Breaking Load,KNBail length,mmPackaging
PA15008-12PA66, Stainless steel wire530047*31*35cm,45pcs/carton

APPLICATION

These clamps will be used as cable dead-end at end poles (using one clamp).Two clamps can be installed as double dead-end in the following cases :at jointing poles
at intermediate angle poles when the cable route deviates by more than 20°.
at intermediate poles when the two spans are different in lengths
at intermediate poles on hilly landscapes

 Key Features:

  • Opening bail and unlosable easy to be installed.
  • Good resistance to the cable oscillations thanks to the flexible stainless steel
bail.
  • Maximum strength load up to 5kn according to the cable used, climatic conditions and installation parameters.

  • Self-adjustable wedge.
  • High strength PA66, stainless steel bail.
  • Long service life.
  • Competitive tension clamp price.
  • Fast produce.
  • Stainless steel bail length is adjustable.
  • Dead end clamp with corrosion resistance.
