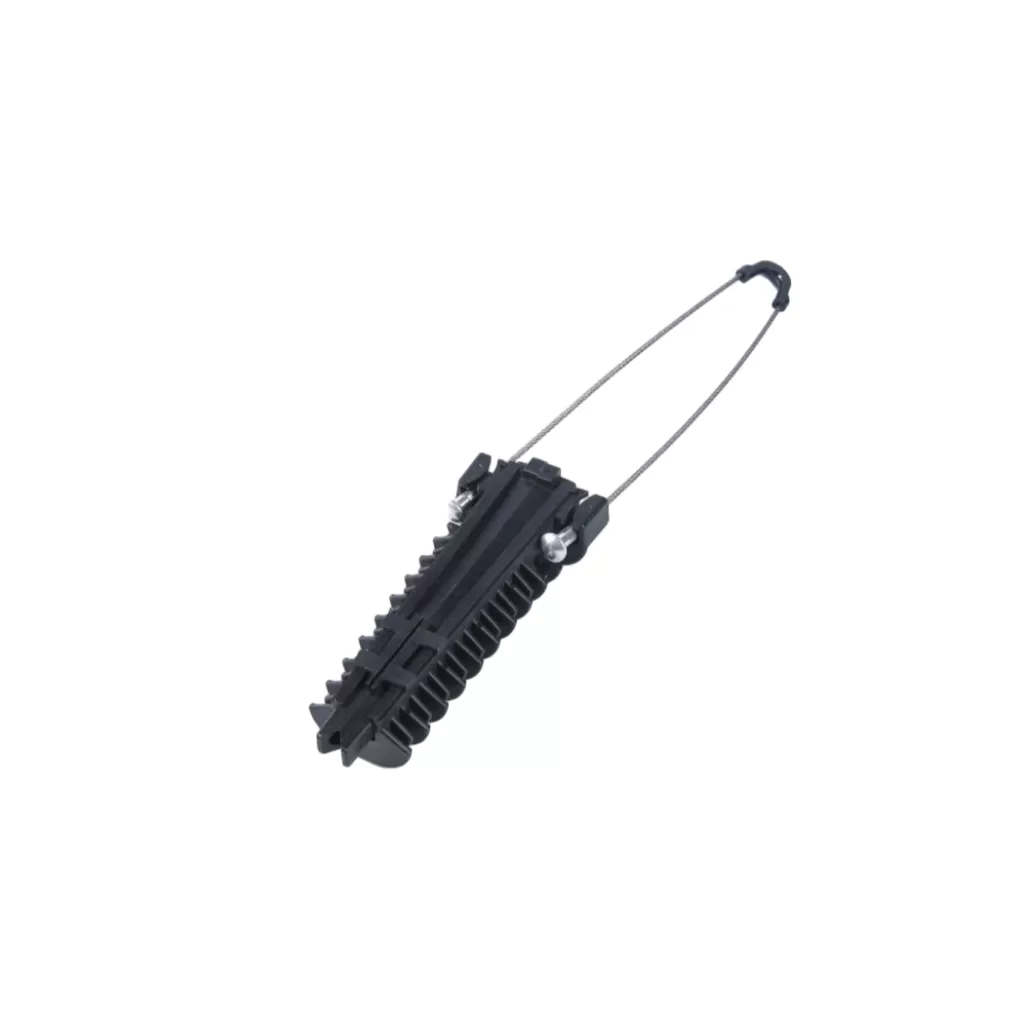

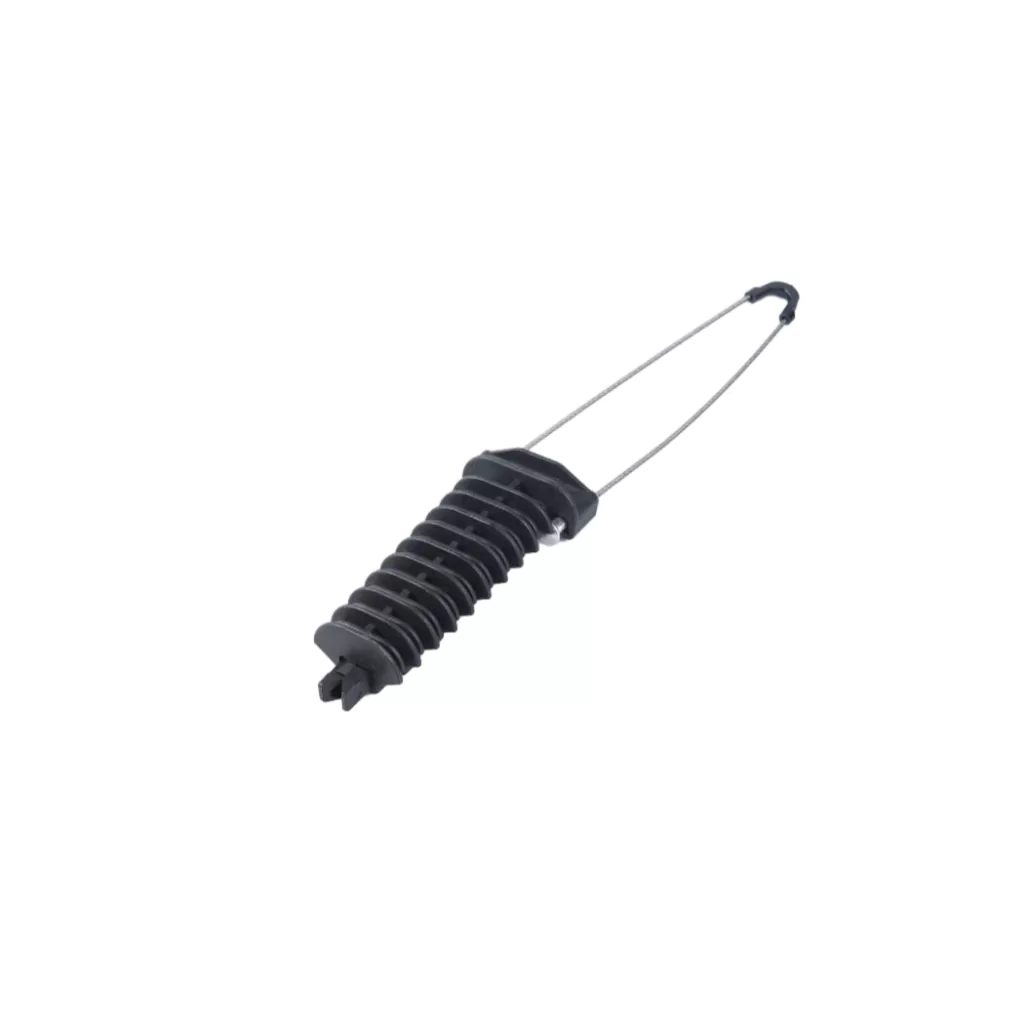

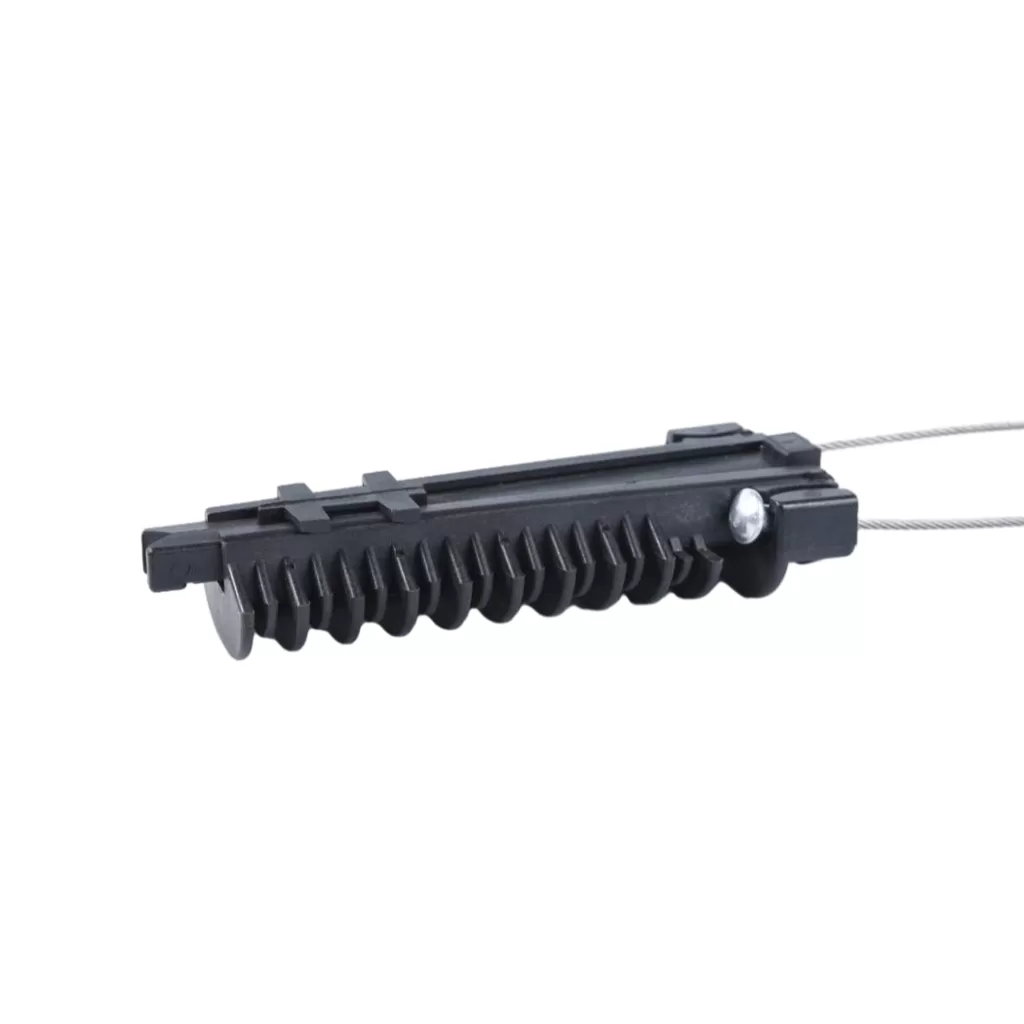

Strain plastic clamp for adss cable, PA2000(12-14MM)

Strain clamp PA2000 is designed to anchor strain low voltage ABC cable or ADSS fiber optic cables in overhead lines, Such as telecommunication lines, energy lines, network lines, with big diameter range 12-16mm.

Clamp TypeCable Diameter,mmMaterialsMin Breaking Load,KNBail length,mmPackaging
PA200012-16PA66, Stainless steel wire1030047*31*35cm,33pcs/carton

APPLICATION

These clamps will be used as cable dead-end at end poles (using one clamp).Two clamps can be installed as double dead-end in the following cases :
at jointing polesat intermediate angle poles when the cable route deviates by more than 20°.
at intermediate poles when the two spans are different in lengths
at intermediate poles on hilly landscapes

Key Features:

  • Opening bail and unlosable easy to be installed.
  • Good resistance to the cable oscillations thanks to the flexible stainless steel
bail.
  • Maximum strength load up to 10kn according to the cable used, climatic conditions and installation parameters.

  • Self-adjustable wedge.
  • High strength PA66, stainless steel bail.
  • Long service life.
  • Competitive tension clamp price.
  • Fast produce.
  • Stainless steel bail length is adjustable.

Aerial networks are subject to repetitive climatic stress during several decades. The optical cable and its accessories, in particular the anchoring and suspension clamps, constitute an interdependent component of the complete system that must withstand during its all live time to the various loads induced by wind pressure, ice sleeve weight, Aeolian vibrations, temperature variations, and be resistant to corrosion, UV radiation.
The choice of accessories duly compatible with the cable and the use made of it is essential for a quick and safe installation, to facilitate the operation and ensure a long-term reliability of the network.
