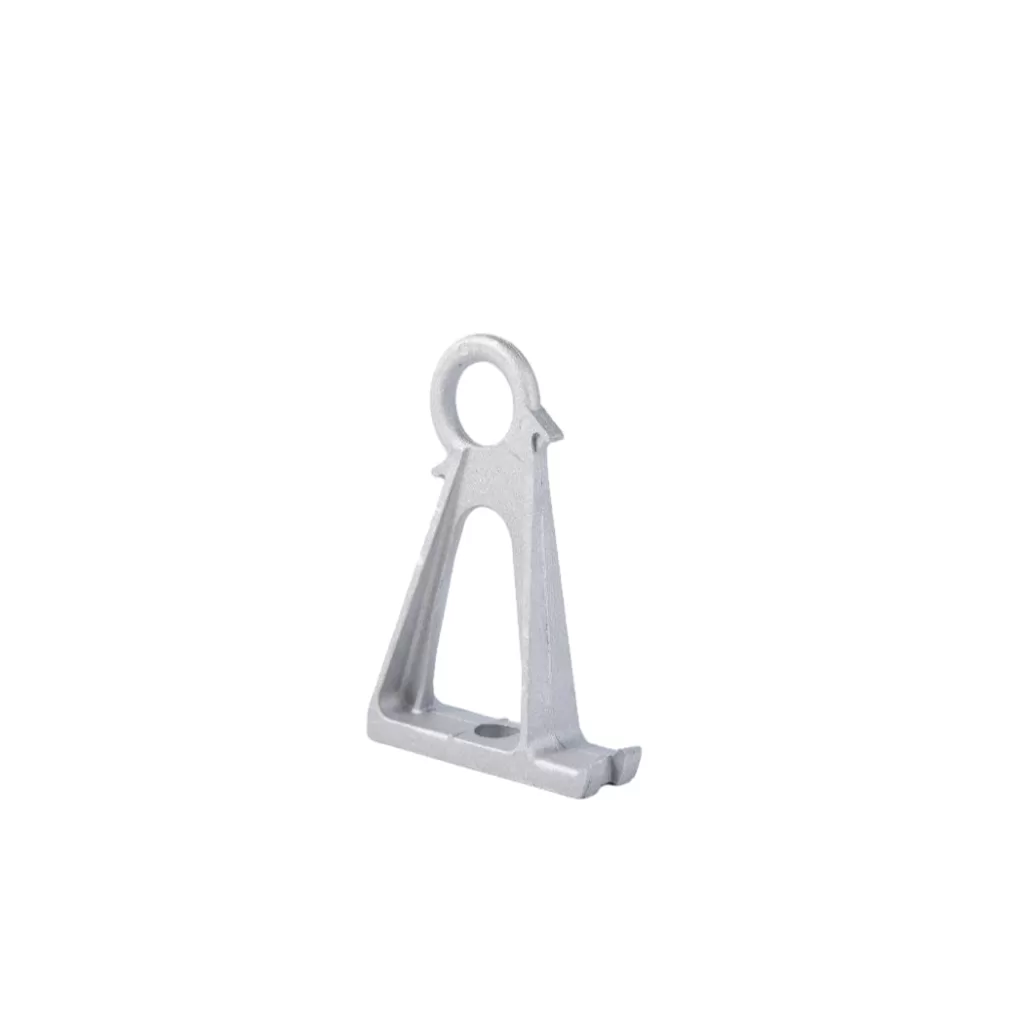

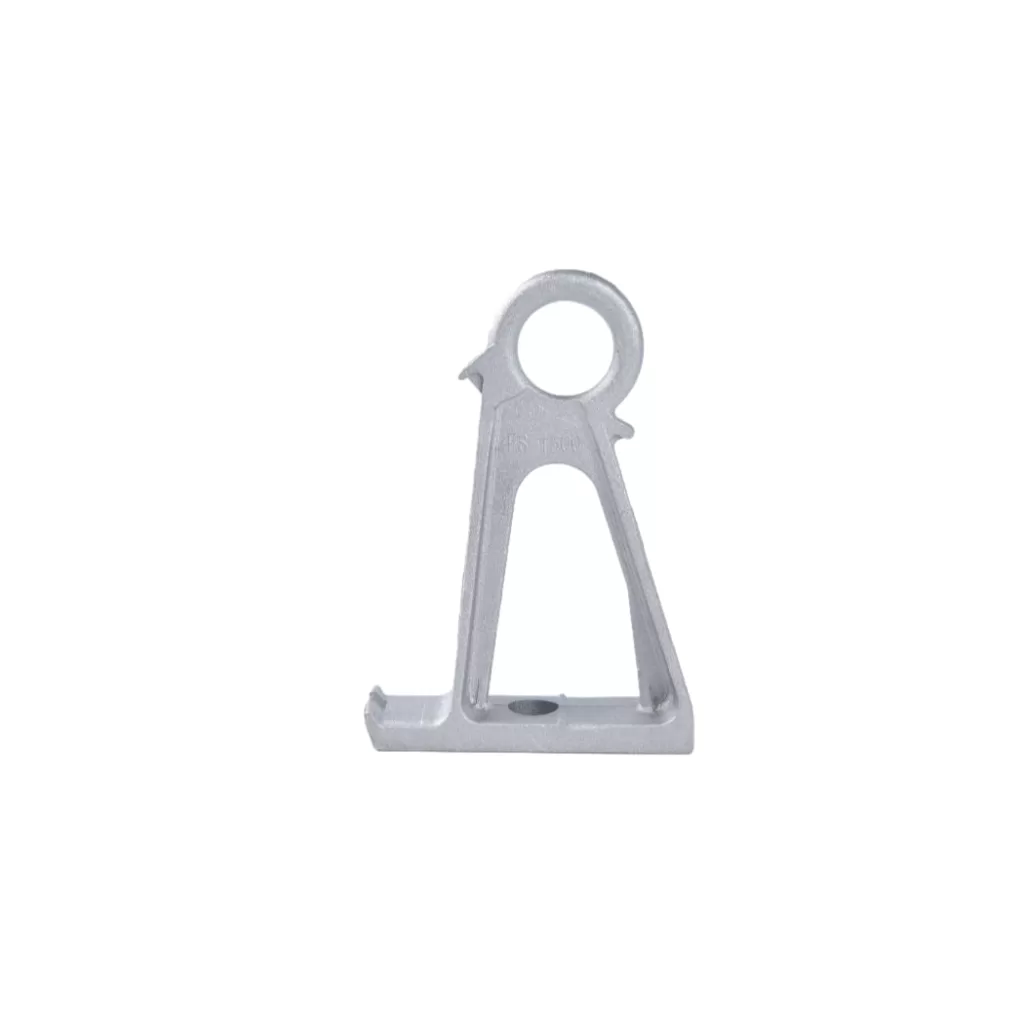

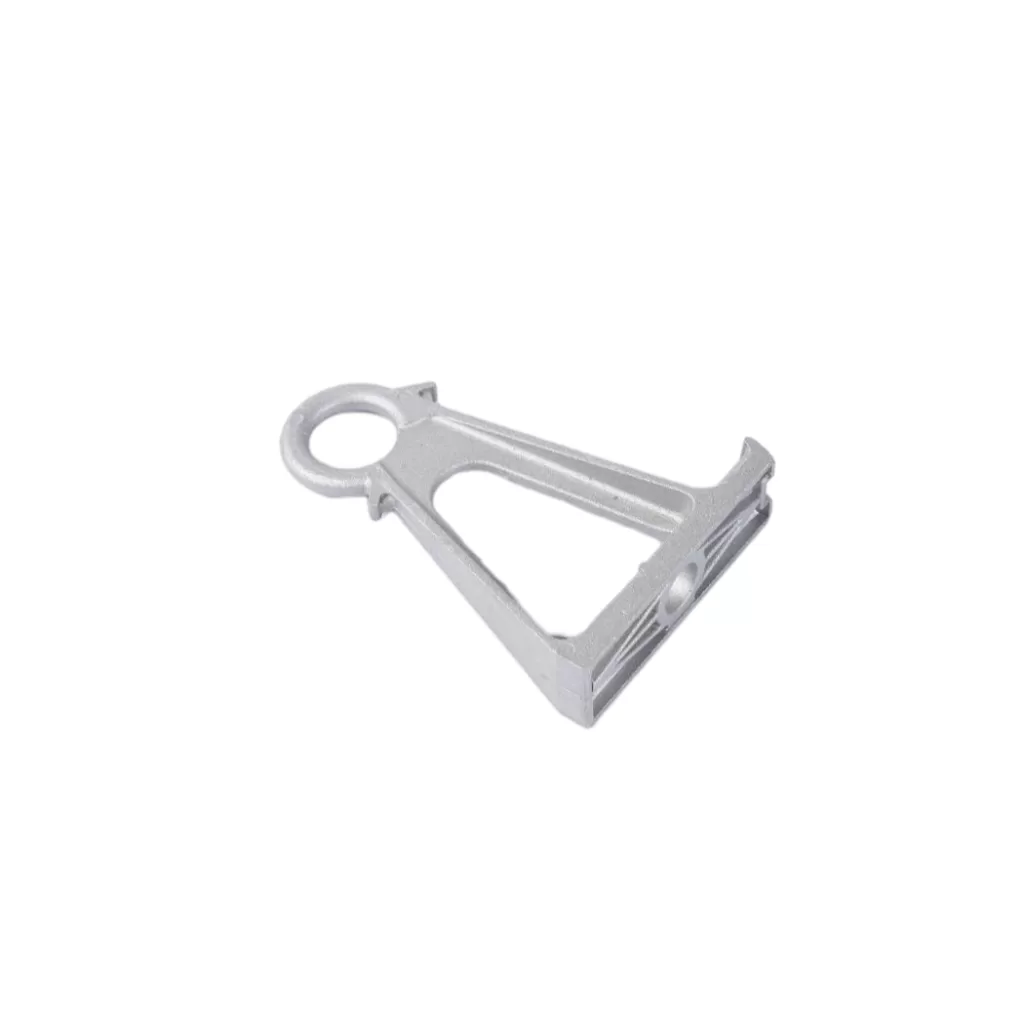

Suspension Bracket for Fiber Optic Cable, ES-1500

The ES-1500 bracket is manufactured from aluminum alloy. It’s developed to tension or suspend fiber optic cable clamps with all installation situations on wooden, metal or concrete poles :

Suspension of running out rollers
Stay systems
Cross-arm installation
Dead-ending of single, double or triple parallel lines.
Dead-ending of several drop wires.

Product TypebahanMBL,KNWeight,kg
ES-15008Aluminum31*31*27cm,100pcs/carton

Installation
With steel bandsThe ES-1500 bracket can be installed on any type of pole – drilled or undrilled – with two 20×0.7 mm stainless steel bands C201 plus two buckles HC-20-T (check our pole banding products). Usually allow two bands of one meter each per bracket.
With boltsIf the top of the pole is drilled (wooden poles, occasionally concrete poles) the ES-1500 bracket can also be secured with bolt. The bolt length should be at least equal to the pole diameter + 50 mm (bracket thickness).
