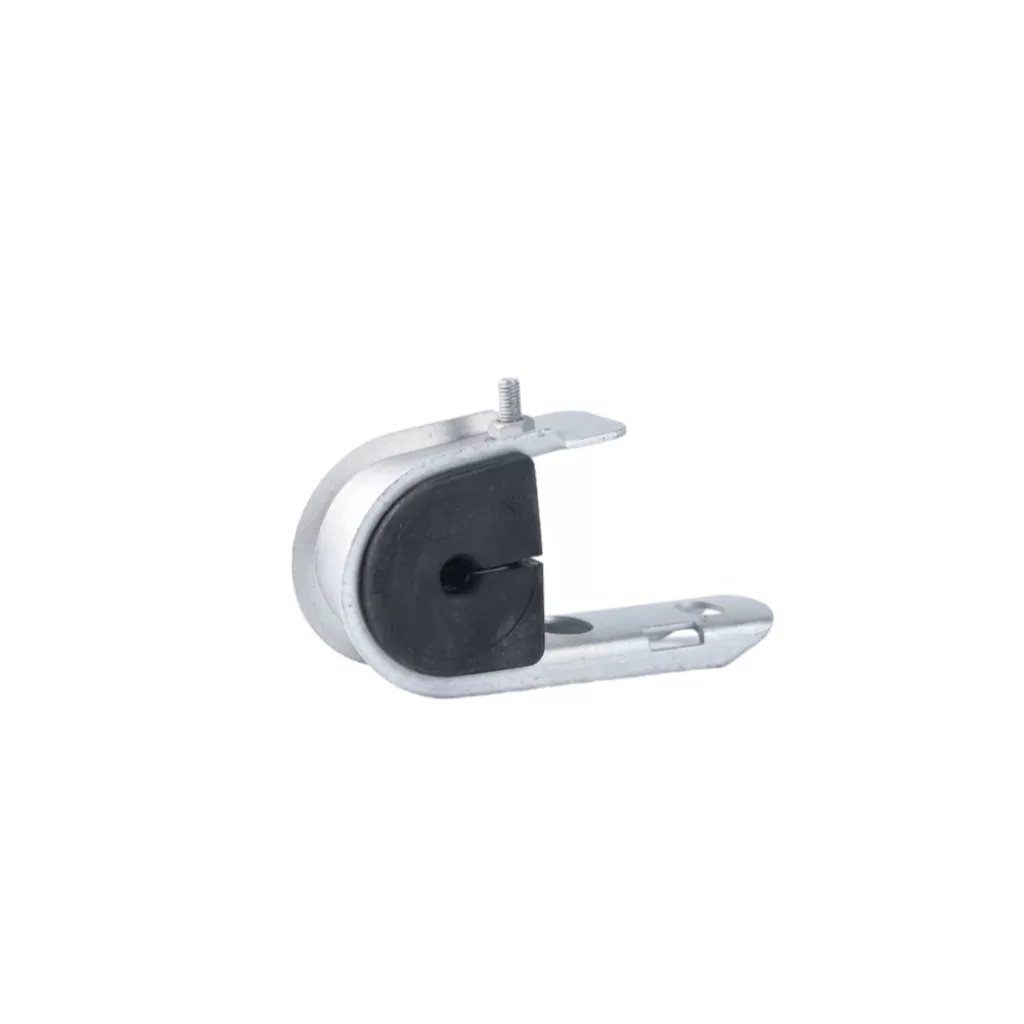

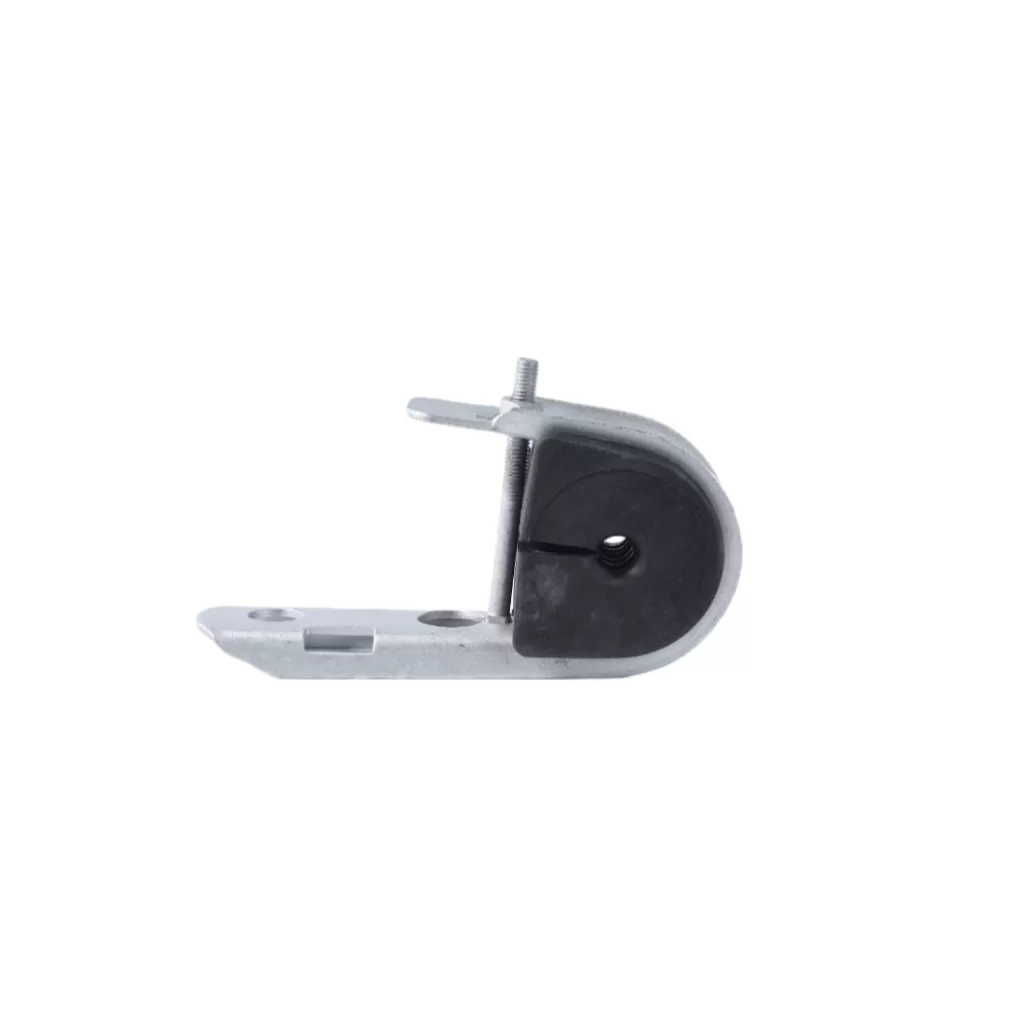

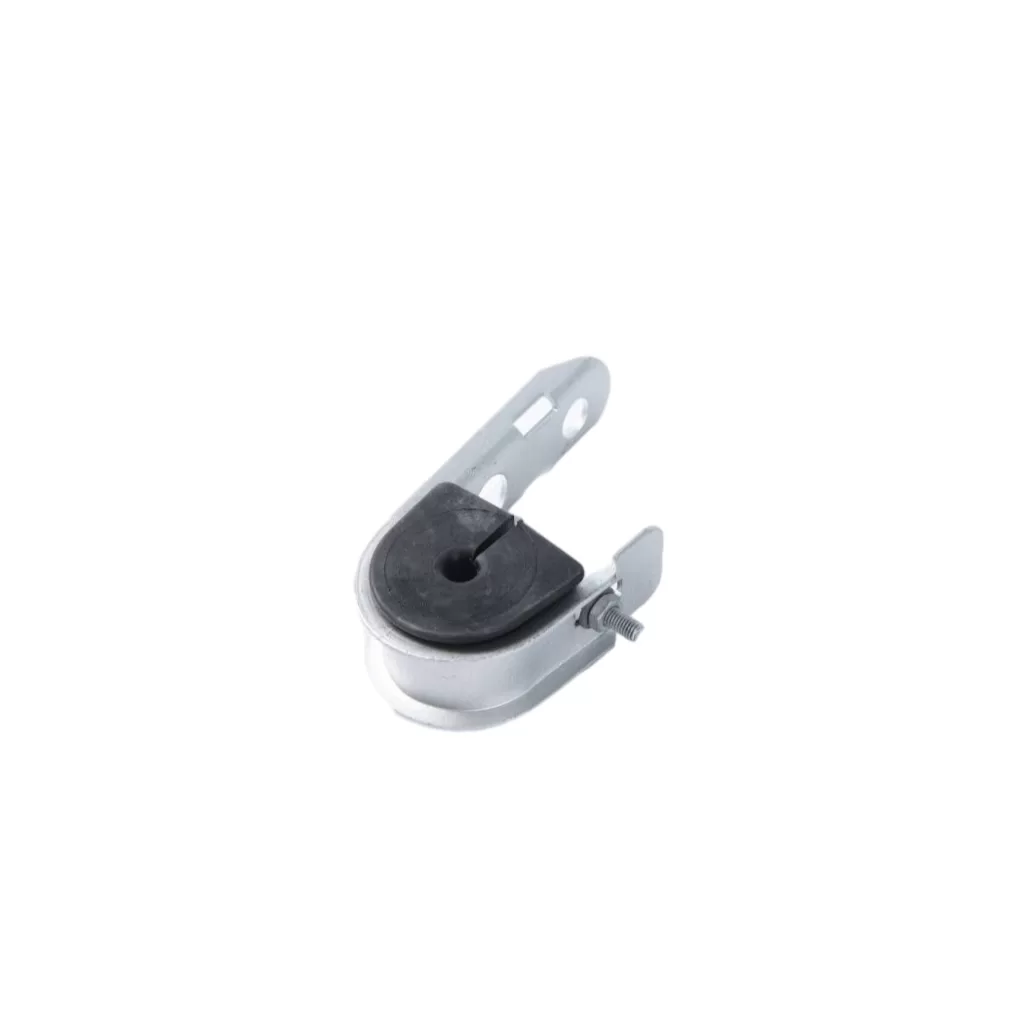

Suspension Clamp Big Type For ADSS Cable(HCB-10-15)

Big type J suspension clamp, are designed to provide a suspension for 5 to 20mm aerial ADSS cables at intermediate poles on cable routes with angle < 20° on access networks, with high mechanical strength.

with neoprene insert for ADSS cables installed on big spans (200m max)

ReferenceKapasitibahanWeight(kg)
  BodyInsertScrew
HCB-10-1510-15mm UV protected neopreneGalvanized steel0.5

Key Features:

  • Easy install with stainless steel bands or pole bolts.
  • The shape of the J Hook allows a running out of the cable directly in the hook
  • The suspension clamps can be directly secured to the poles using bolts or bandings.     -They can also be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations
  • Long service life and low prices.

Installation procedure

  1. Installation of the J Hooks on the poles :In case the suspension clamps are directly secured t the pole, place them perpendicularly to the cable route and secure them to the pole using bolts or pole banding. Remove the neoprene inserts.In case of suspended J Hooks, install pole brackets or hook bolts at all intermediate poles with angle < 20°. The brackets and/or hook bolts should be positioned on the pole perpendicularly to the cable route.
  2. Running out and tensioning of the cable :Dead-end the cable at the first end pole.The shape of the Jclampenables to run out the cable directly in the J Hooks. Some telecom companies however may require the use of temporary running out rollers. Install them just above the J Hook Clamps. Different models of running our rollers are available from Telenco.Run the cable on the rollers or directly in the J Hooks to the last end pole and tension the cable to its full installation load using a cable grip, a winch and a dynamometer.
