As fiber optic networks continue to expand across urban and rural environments, service providers are constantly seeking solutions that enhance both deployment efficiency and maintainability. One such solution is the Toneable Flat Drop Cable, designed to simplify fiber routing, reduce installation costs, and streamline network maintenance.
In this guide, we’ll explore everything you need to know about Toneable Flat Drop Cables—from their construction and key features to their real-world applications. Whether you’re a telecom operator, system integrator, or distributor, understanding the value of this cable type can help optimize your FTTH or OSP deployments.
What is a Toneable Flat Drop Cable?
A Toneable Flat Drop Cable is a type of fiber optic drop cable used in the last-mile section of a fiber-to-the-home (FTTH) or fiber-to-the-premises (FTTP) network. What makes it “toneable” is the inclusion of a metallic (usually steel or copper) locating wire, which allows the cable to be detected and traced using standard tone-and-probe equipment.
This unique feature is crucial for underground installations where visibility is limited and accurate cable identification is required during maintenance or upgrades.
Key Specifications:
- Contagem de fibras: 1 to 12 fibers
- Cable Structure: Flat profile with toneable wire embedded
- Construction: Dielectric or armored variants available
- Outer Jacket: UV-resistant, flame-retardant LSZH or PE
- Strength Elements: FRP rods or steel for durability and tension resistance
- Tracer Wire: Copper-clad steel or copper for tone testing
Why Choose Toneable Flat Drop Cable?
Traditional drop cables often require additional locating tools or methods during underground deployments and repairs. With a Toneable Flat Drop Cable, tracing becomes quick and efficient, eliminating the guesswork and reducing risk of accidental damage.
Key Benefits:
1. Underground Traceability
The integrated tone wire allows technicians to locate the cable path using tone generators and probes—critical for avoiding unintentional damage during excavation or rerouting.
2. Fast and Flexible Installation
Its flat, compact profile enables easy routing in ducts, conduits, handholes, or direct burial environments. Pre-terminated versions reduce on-site splicing and save labor time.
3. Versatile Deployment Environments
Suitable for aerial, buried, or conduit applications. Can be installed in harsh conditions thanks to UV- and moisture-resistant jackets.
4. Reduced Downtime During Maintenance
Accurate cable tracing helps isolate fiber lines quickly during maintenance or service restorations, improving uptime and minimizing operational disruptions.
5. Cost-Efficient
The toneable feature eliminates the need for separate locating wires or duct locators, reducing total project costs.

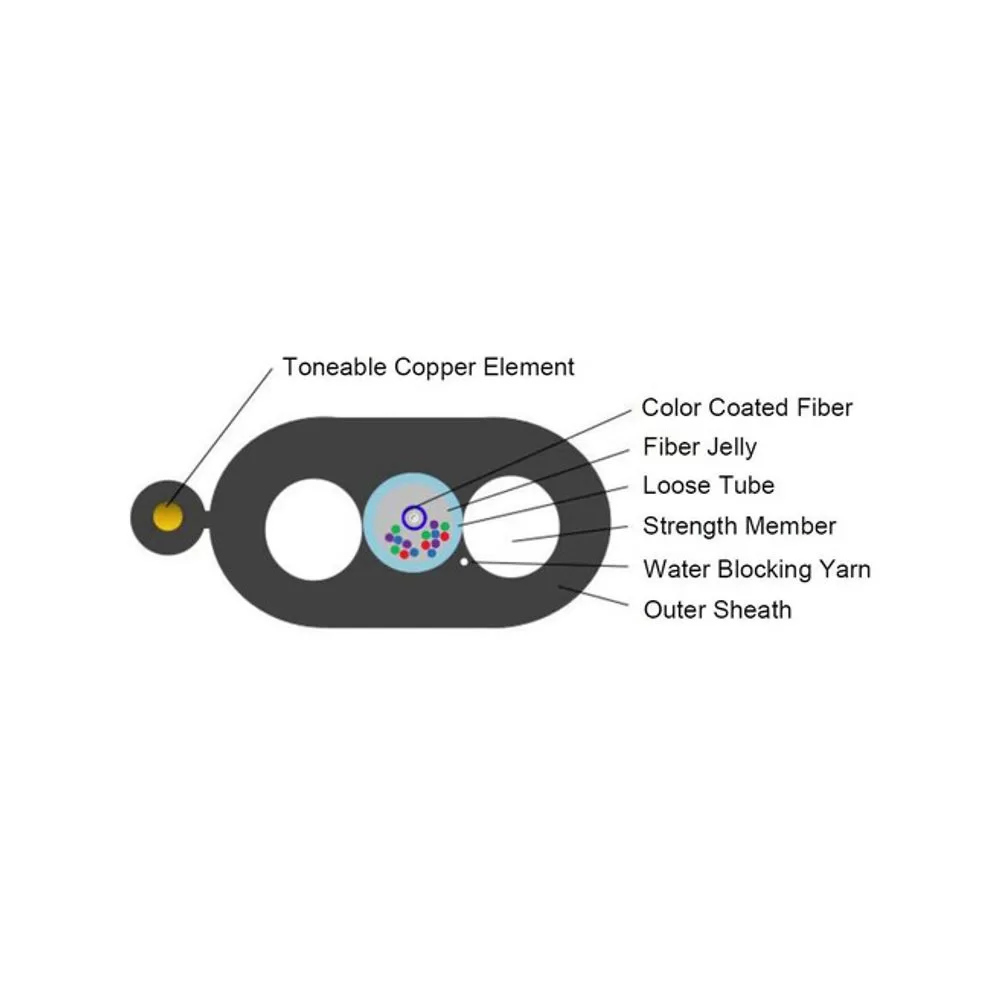

Construction of a Toneable Flat Drop Cable
The robust construction of a Toneable Flat Drop Cable ensures durability and performance in even the most demanding OSP and FTTH environments.
Standard Components:
- Optical Fiber(s): 1 to 12 single-mode G.657.A1/A2 or G.652.D fibers
- Strength Members: FRP rods or steel wires placed symmetrically for tensile load support
- Tone Wire: Copper or copper-clad steel tracer wire bonded into jacket
- Outer Jacket: Black UV-resistant LSZH or PE with flame-retardant properties
- Water Blocking: Optional gel or dry water-blocking yarns to prevent moisture ingress
- Armor Layer (Optional): Corrugated steel or other metallic protection for rodent resistance
Applications of Toneable Flat Drop Cable
1. FTTH (Fiber to the Home)
In residential FTTH deployments, Toneable Flat Drop Cable is ideal for connecting optical network terminals (ONTs) to distribution points. Its toneable feature is especially beneficial for buried drop installations in suburban neighborhoods.
2. MDU (Multi-Dwelling Units)
This cable is widely used in apartment buildings and condos where indoor/outdoor transitions and limited space require compact and flexible routing.
3. Rural Broadband Projects
Rural fiber rollouts often involve direct burial. The traceability of toneable flat drop cables ensures network longevity and easy future expansions or repairs.
4. Telecom and ISP Networks
For ISPs and telecom carriers deploying high-volume networks, these cables offer both installation efficiency and reduced maintenance labor, ensuring faster ROI.
5. Government & Campus Networks
Used in enterprise campuses, schools, hospitals, and government facilities for secure, reliable last-mile connectivity.
Technical Parameters of Our Toneable Flat Drop Cable
| Parâmetro | Especificação |
|---|---|
| Contagem de fibras | 1–12 Core (Singlemode) |
| Outer Jacket | LSZH or PE, UV-resistant |
| Resistência à tracção | ≥ 600N (short-term), ≥ 300N (long-term) |
| Crush Resistance | ≥ 1000N/100mm |
| Bend Radius | ≥ 10 × cable diameter |
| Temperatura de operação | -40°C to +70°C |
| Flame Retardancy | IEC 60332-1, UL 1581 |
| Locating Wire | Copper-clad steel or solid copper (0.5–1.2 mm) |
Custom designs and OEM specs are available on request.
Installation Methods of Toneable Flat Drop Cable
- Direct Burial: Suitable for underground placement without additional conduit thanks to rugged design and tone wire traceability.
- Conduit Installations: Easy to route through microducts and standard conduits.
- Aerial Deployment: Can be lashed or supported by messenger wires for pole-mounted installations.
- Indoor Transitions: Versions with LSZH jackets allow indoor extension from outdoor entry points.
Customization Options for Toneable Flat Drop Cable
As a professional manufacturer of Toneable Flat Drop Cable, we offer full customization options to match your specific project requirements:
- Contagem de fibras: 1, 2, 4, 6, 8, or 12 cores
- Tipo de fibra: G.657.A1, G.657.A2, G.652.D
- Material da jaqueta: LSZH, PE, or customized compound
- Tracer Wire Type: Solid copper or CCS in different gauges
- Color & Printing: Custom outer jacket color and logo branding
- Embalagem: Wooden drum, reel-in-box, or customized reel sizes
- Pre-Termination: Factory-installed connectors and pulling eyes available
Quality Assurance & Compliance
All of our Toneable Flat Drop Cables are manufactured in ISO-certified facilities and tested according to international standards including:
- ITU-T G.657/G.652
- IEC 60794
- GR-20-CORE
- RoHS / REACH Compliance
- UL Flame Ratings (LSZH version)
Each batch undergoes full optical performance testing (IL/ORL), tensile strength verification, and tone wire continuity tests before shipping.
Why Choose Us as Your Toneable Flat Drop Cable Manufacturer?
We are a trusted OEM/ODM supplier with over a decade of experience in fiber optic cable production. Our commitment to quality, fast lead times, and flexible order quantities make us the go-to manufacturer for network builders around the world.
Our Advantages:
- In-house R&D and cable design team
- Complete production and QC system
- Competitive pricing for bulk orders
- Global shipping and rapid delivery
- Custom cable samples and prototype support
- Support for small MOQ and large-scale rollout projects
Final Thoughts
Toneable Flat Drop Cable is a smart, efficient, and traceable solution for the modern fiber optic access network. Whether you’re deploying in urban neighborhoods or rural landscapes, its rugged design, integrated tone wire, and flexible configurations offer significant advantages in installation, operation, and maintenance.
If you’re planning your next FTTH, OSP, or broadband expansion, partner with us to get reliable, high-performance toneable drop cables tailored to your needs.
Ready to Order?
Contact us today to request samples, technical datasheets, or a custom quote for your Toneable Flat Drop Cable needs. We are here to support your fiber deployment—efficiently, affordably, and reliably.
