Mule Pull Tape Manufacturer
FiberCheap Pull Tape is made of flat woven polyester, also called “Mule Tape”, provides a reliable means of pulling electrical wires conduit or pipes.
Pull tape makes your outside plant effective and reduces labor cost in OSP installations.
* You can also send inquiry to email: [email protected]
Who Bought Mule Pull Tapes
Quality FiberCheap Mule Pull Tapes at Affordable Cost
Polyester Pulling Tape in Brief
Flat woven polyester pulling tape, also called “mule tape”, provides a reliable means of pulling electrical wires conduit or pipes. The high quality woven polyester is low stretch, high strength, has pre-lubrication and is sequentially footage marked.
100% Polyester
Tensile Strength, Pre-lubricated, with Footage Markings
Pre-Lubricated
To reduce friction and prevent duct cutting

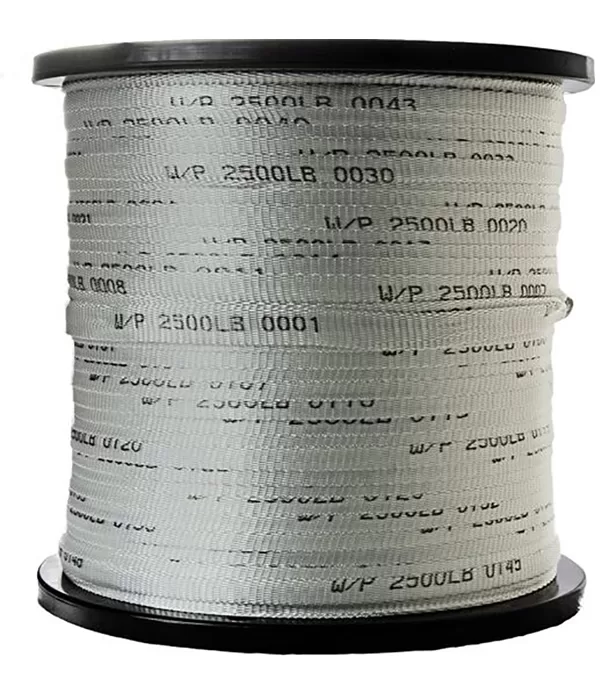

Printed with sequential footage
To enable monitoring of cable location

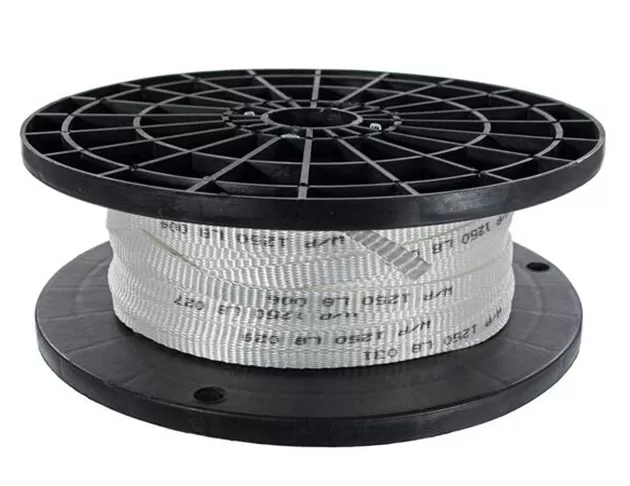

Packaged on sturdy plastic reels
This pull tape can be packaged 3000ft, 5000ft or customized
Easy to Installation
Installers and Network Engineers can finish conduit installation time in half
Future Bandwidth
Pull Tape increases the utilization rate of communication pipeline up to 37%-62%
Saving Labor Cost
Save the pipeline resource and reduce investment for fiber cable installation
Mule Pull Tape Benefits
Mule Pull Tape maximizes your conduit and network
Lubricated For Easy Pulling And Reduced Friction
Tensile strength of braided sub-pipe is more than 1,000 kg
Low Elongation For Enhanced Worker Safety
Braided sub-pipe is not twisted during the laying and could be bent freely
Durably Printed With Sequential Footage Or Meter Markings
Braided sub-pipe has no bending memory and doesn’t curl like PE sub-pipe
Lightweight And Easily Blown Into Conduit Or Innerduct
The friction coefficient of braided sub-pipe is low and prevents the friction between cables
Available In A Variety Of Pulling Strengths From 200 To 6,000 Lbs (91-2727 Kg)
The textile sub-pipe has high chemical inertness and could be exposed to the severe underground environment for a long time with design life of 50 years
Easily Spliced Using Conventional Methods Or The MULEKNOT
Low requirement on construction site, especially in downtown area
320
Millions Feet of Mule Pull Tape Sold Annually
87
Happy Customers globally bought our Mule Pull Tape
15
Years Mule Pull Tape Production Experience
3

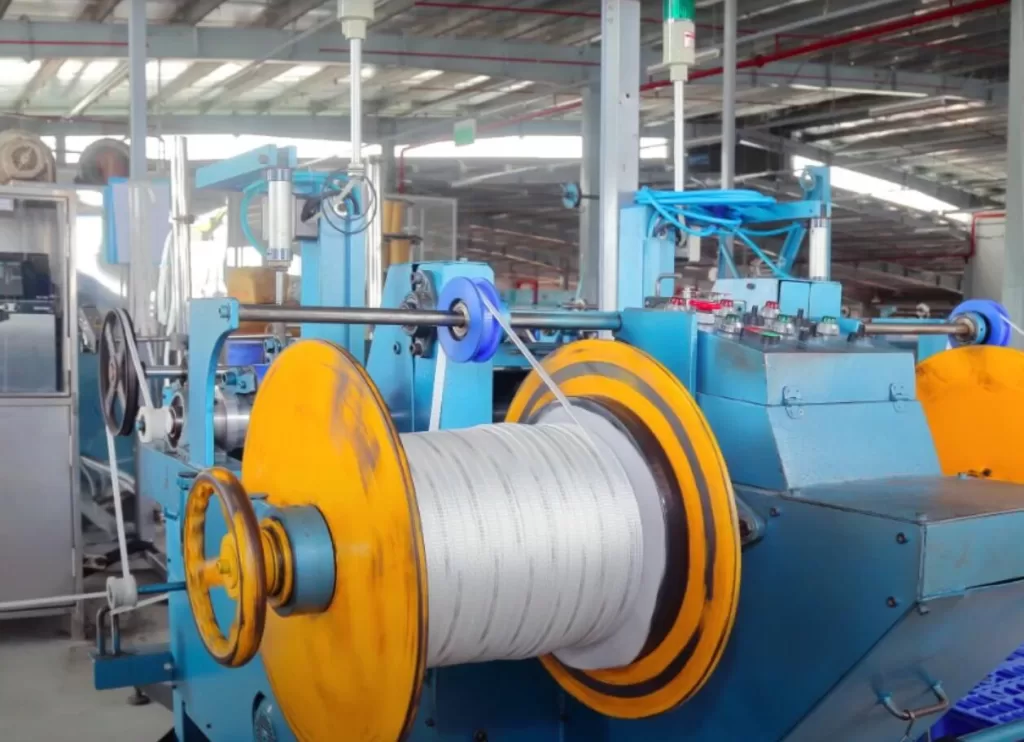

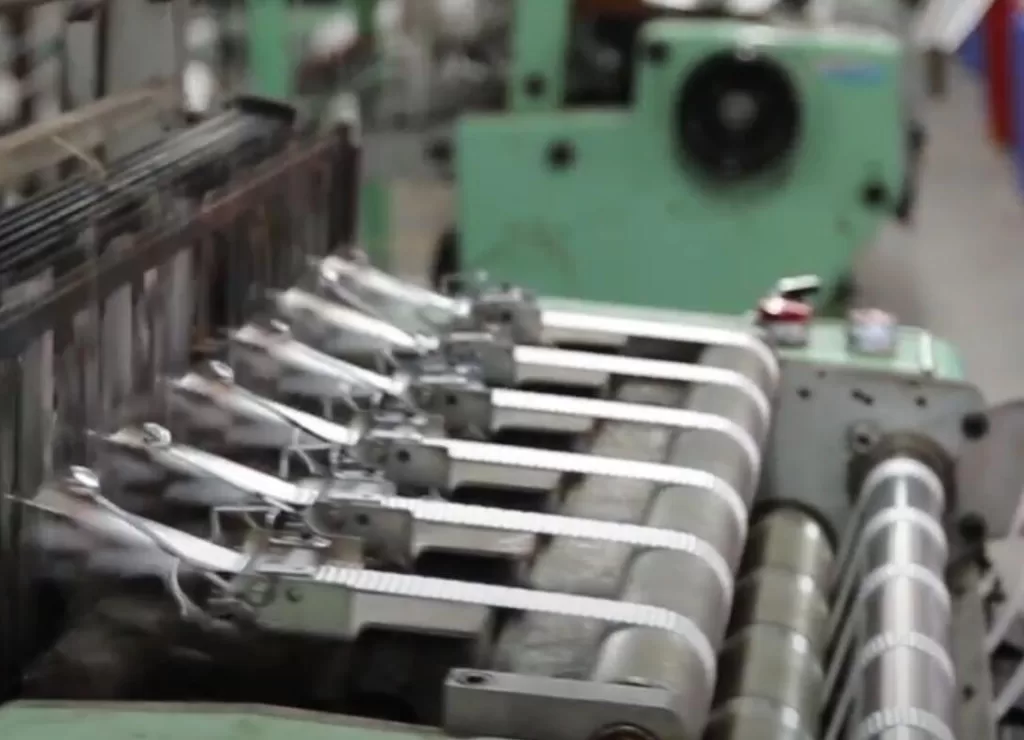

Production Lines for this Mule Pull Tape
Mule Pull Tape Editting
This Fiber Cable or Electrical Cable Pulling Tape: Electrical professionals love Ravenox polyester pull tape as it’s flexible, easy to handle, and due to its’ lightweight blows through a conduit and inner duct easily.
Want to test our Mule Pull Tape? Just contact us below and we will send you the free samples in 2 days.
Mule Pull Tape Manufacturer
FiberCheap is dedicated to produce and supply our customers with quality excellent Mule Pull Tape. You can customize your LOGO on any type of our Mule Pull Tape. Usually you can also expect to a fast lead time for urgent need.
FAQs on Mule Pull Tape
Here below are some common questions on Mule Pull Tape, if you still have questions, feel free to contact us via [email protected]
What is the Mule Pull Tape?
Pull tape, also called mule tape, is used for the routing of wires through walls and electrical conduits. It’s made of polyester or yarn fibers that are flattened into a ribbon-like shape to disperse pull load. This tool has useful features, such as measurement markings, that facilitate the routing process. It reduces the amount of labour required to complete a wiring job as it functions as a threading line, measuring tape and winchline all in one. A good pull tape has low stretch, high strength and minimizes friction to prevent burning.
Polyester Pull Tape: Easy to use, lightweight conduit tape for electrical wiring installations. Easily pull or blow through fiber optics, power cables, audio cables or network lines with pull webbing for quick cable installations. Perfect for DIY home and office projects and commercial applications.
Safest Webbing Available: The proprietary pre-lubrication of the tape reduces the coefficient of friction and eliminates duct cutting. The low stretch polyester material distributes heat across its’ wide, flat profile. This improves efficiency and prevents “snap back”, which occurs when a rope under high tension elongates and either breaks or snaps back, often injuring the installer.
Applications: Flat Braid Polyester Pull Tape is designed for heavy-duty residential and commercial applications to include sub-lines, pulling lines, conduit lines, dielectric, and fiber-optic. Measure as You Go: Accurate sequential footage markings enable monitoring of cable location during a pull, eliminating the need for measuring tapes and help determine the quantity of webbing remaining on a partial spool. The pull tape is on continuous length reels that are packaged on heavy-duty plastic reels for long life and easy transport. Choose the Right Length & Width: Order the amount you need with tape by the foot in 3,000 ft and 5,000 ft spools and custom continuous length reels available in lengths up to 100,000 ft for faster, easier cable placement. Diameters include 1/2 inch, 5/8 inch, and 3/4 inch for the most common conduit sizes.

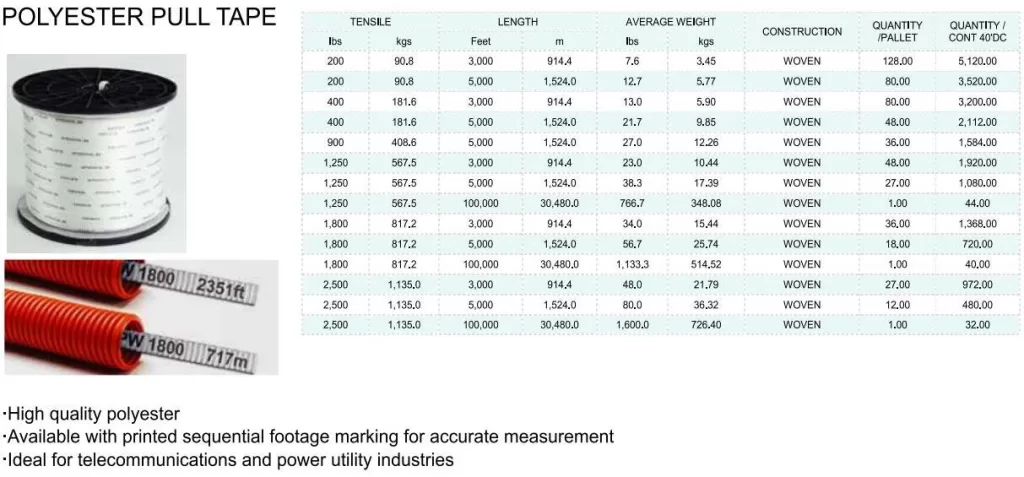

What are the Mule Pull Tape Specifications?
You can refer to this specifications table to send us inquiry.
What are the common specifications for Mule Pull Tapes?
Berry Compliant Polyester Pull Tape is available in 3 different diameter options. Custom continuous length reels available for faster, easier cable placement. DIAMETER : METRIC : TENSILE STRENGTH : MAXIMUM REEL LENGTH
1/2-inch : 12.7 mm : 1,250 lbs. : 100,000 FT
5/8-inch : 15.88 mm : 1,800 lbs. : 60,000 FT
3/4-inch : 19.05 mm : 2,500 lbs. : 45,000 FT
1/2 inch x 500 FT
1/2 inch x 1,000 FT
1/2 inch x 1,500 FT
1/2 inch x 3,000 FT
1/2 inch x 5,000 FT
5/8 inch x 500 FT
5/8 inch x 1,000 FT
5/8 inch x 1,500 FT
5/8 inch x 3,000 FT
5/8 inch x 5,000 FT
3/4 inch x 500 FT
3/4 inch x 1,000 FT
3/4 inch x 1,500 FT
3/4 inch x 3,000 FT
3/4 inch x 5,000 FT
Get Your Mule Pull Tape Now!
As a trustworthy Mule Pull Tape supplier, we keep working hard to improve our products and service. You will get benefits from our cooperation in your procurement.
